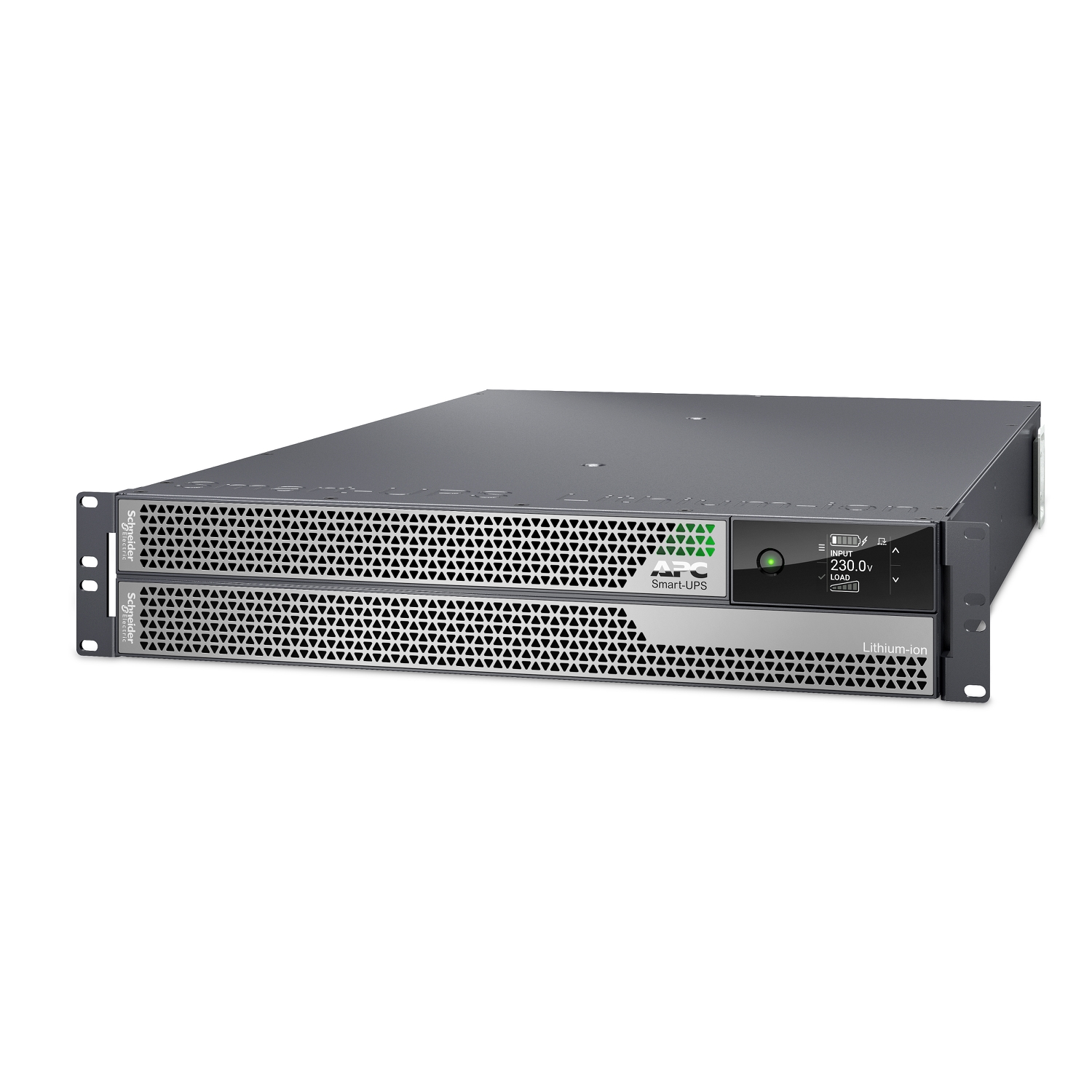

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5KVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hardwired input and 6xC13+4xC19 IEC outlets. It embeded Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Main
|
|
|
|
|
|
| Main input voltage |
230 V AC 1 phase |
| Other input voltage |
220 V |
| Efficiency at full load |
180…275 V adjustable (half load) |
| Input connection |
1 hard wire 3-wire (1P + N + E) |
| Input frequency |
40…70 Hz auto-sensing |
| Output voltage |
230 V AC 1 phase |
| Other output voltage |
220 V |
| Rated power in W |
5000 W |
| Rated power in VA |
5000 VA |
| Output connection |
6 IEC 60320 C13
4 IEC 60320 C19 |
| Bypass type |
Internal bypass (automatic and manual) |
| Crest factor |
3 : 1 |
| Harmonic distortion |
Less than 2 % |
| Maximum configurable power in VA |
5000 VA |
| Maximum configurable power in W |
5000 W |
| UPS topology |
On-Line |
| Waveform type |
Sine wave |
| Full load runtime |
00:05:00 5000 W |
| Half load runtime |
00:12:00 2500 W |
| Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Complementary
| Battery type |
Li-Ion (Lithium-Ion) internal included |
| Emergency power off |
Yes |
| Free slot |
0 |
| Alarm |
Audible and visible alarms : prioritized by severity |
| UPS connectivity |
Serial port
USB port
Embedded network management card 3 |
| Surge energy rating |
1260 J |
| Number of rack unit |
2U |
| Cable length |
3.05 m |
| Color |
Silver grey |
| Height |
86 mm |
| Width |
432 mm |
| Depth |
701 mm |
| Product weight |
29.2 kg |
| Mounting location |
Front |
| Mounting preference |
No preference |
| Mounting mode |
Rack-mounted with kit
Tower-mounted with kit |
| Two post mountable |
0 |
| USB compatible |
Yes |
| Mounting position |
Horizontal
Vertical |
| Mounting mode |
Rack/tower convertible with included kit |
| Provided equipment |
1 CD (software and documentation)
USB cable
Front cover
Earth terminal block
Temperature sensor
Stabilization feet
Rack mounting hardware
2P-3P connector
2 x C13-C14 power cord
Break out panel
Rail splice |
| Number of power module filled slots |
0 |
| Number of power module free slots |
0 |
| Additional specification |
High density |
| Redundant |
No |
| Range of product |
Smart-UPS Ultra |
| Product or component type |
Uninterruptible power supply (UPS) |
Environment
| Product certification |
CE
UKCA
EN/IEC 62040-1 |
| Marking |
CE Mark
UKCA |
| Ambient air temperature for operation |
0…40 °C |
| Ambient air temperature for storage |
-15…45 °C |
| Storage altitude |
0…15240 m |
| IP protection |
IP20 |
| Relative humidity |
0…95 % non-condensing |
| Storage relative humidity |
0…95 % non-condensing |
| Acoustic level |
55 dBA |
| Heat dissipation |
931 Btu/h |
| Operating altitude |
0…10000 ft |
Batteries & Runtime
| Battery type |
Li-Ion (Lithium-Ion) |
| Battery voltage |
180 V |
| Extendable runtime |
1 |
| Included battery module |
0 |
| Empty battery slot |
0 |
| Typical recharge time |
1.5 h |
| RBC quantity |
1 |
| Battery life |
5…10 year(s) |
| Battery charging power |
600 W rated |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
39.2 cm |
| Package 1 Width |
58.5 cm |
| Package 1 Length |
98.4 cm |
| Package 1 Weight |
38.5 kg |
| SCC14 |
10731304435754 |
Contractual warranty
| Warranty (in months) |
60 |
